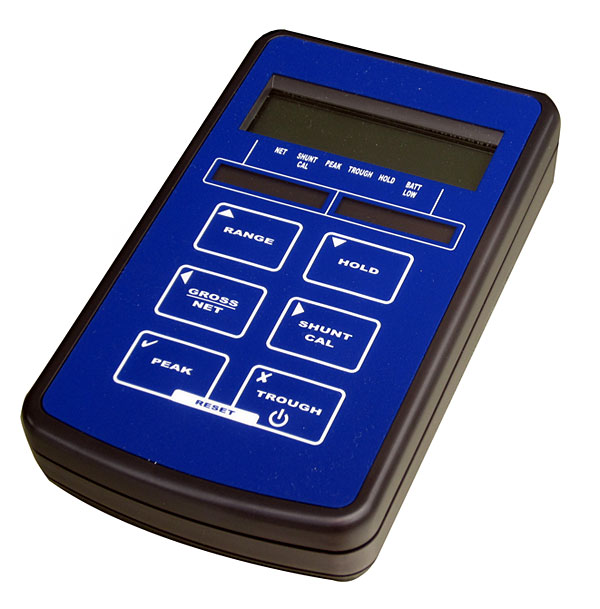

Cable Linked Meter

Measures Load / Force / Pressure

Measures from four wire load cells/transducers.

Pressure Meter Features

  • Pushbutton calibration and setup
  • May be calibrated by:
           – Entering the mV/V characteristics of the sensor, or
           – By applying a known load/pressure
  • Selectable sample rate up to 100 samples per second
  • User pushbutton may be programmed to any one of a selection of functions eg
             peak hold, display hold and tare
  • RS232 serial communications standard
  • Rugged construction
  • Automatic low battery indication
  • 9V 216 type battery supplied

Specifications

  • Input – Radiometric four arm strain bridge
  • Input sensitivity – 0.5mV/V to 100mV/V selectable
  • Accuracy – 0.005% of full scale
  • Sample rate – Five to 100 samples per second
  • Microprocessor – MC68HC11 CMOS
  • Display – Standard four digit LCD 12.7mm
  • Output –RS232 serial data
  • Battery – 9V 216, (alkaline recommended)
